Takyeef insulation PIR Panels & Duct System
The takyeef insulation PIR panel is manufactured of CFC free closed cell poly-isocyanurate foam “sandwiched” between aluminium sheets, one on each side. The panel sheet which is usually 20 or 30 mm in thickness with a foam density of 48-44 kg/ m³ is later cut, shaped, fabricated, and glued into different profiles to form the final duct. The duct, which is later connected to other ducts via aluminium profiles and/ or flanges forms the complete system.
Takyeef insulation Panel Applications & Offerings
The takyeef insulation System is used in commercial, residential and industrial applications. The final ducting is versatile and can be installed internally or externally and can be concealed above a false ceiling or visibly mounted.
Takyeef insulation is capable of manufacturing various forms of PIR panels depending on client requirements and project specifications.

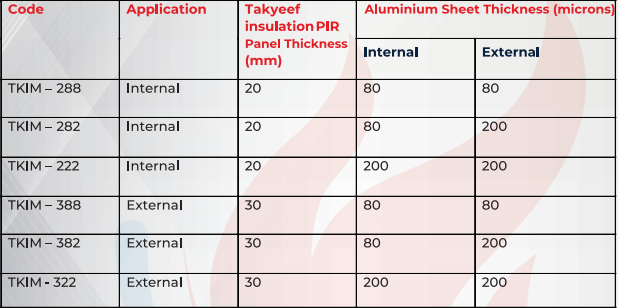

Details of the available sheets can be found in Table1.
Different Panels Offering

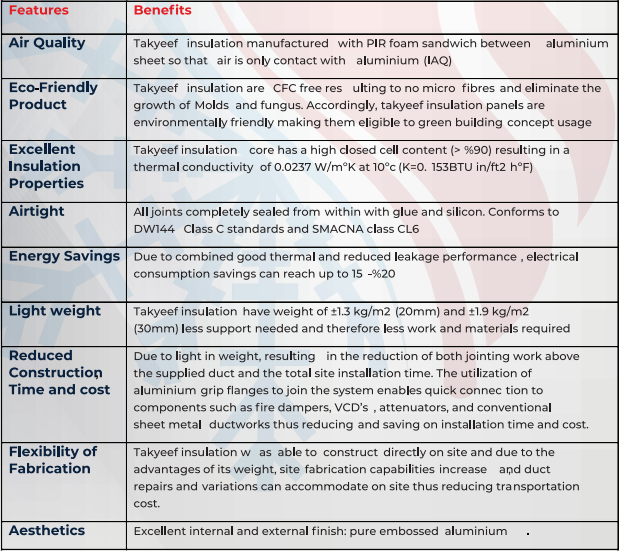

Features & Benefits
Our Products
Aluminium Clumping Ruler
Rubber Hammer
Compass
Glue spreader manual
PVC corner (30mm&20mm) :Thickness
Profile Glue
Pre insulated volume control Damper
Reinforcement (Disc & Bar) Thickness: 14mm & Length : 4mt
Tiger joint
Cross Fixing Device
Aluminum Sliding channel Thickness: 30mm Length: 4 LM
Screw For Stiffening Rod
Manual Bending Machine
Extended Silicon Tool
H-Insert (H-Bayonet) Thickness: 20mm Length: 4LM
